Carted Rake

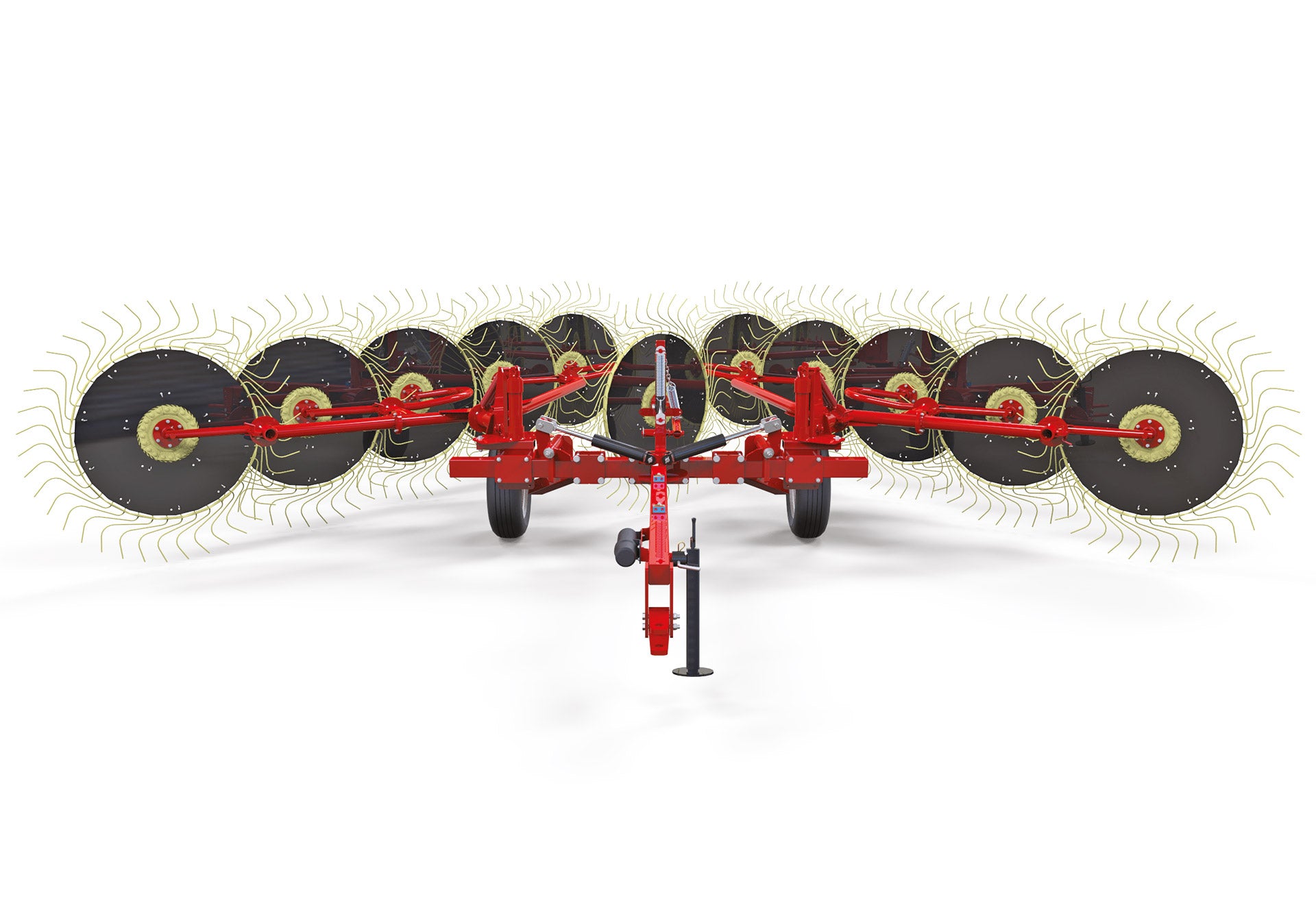

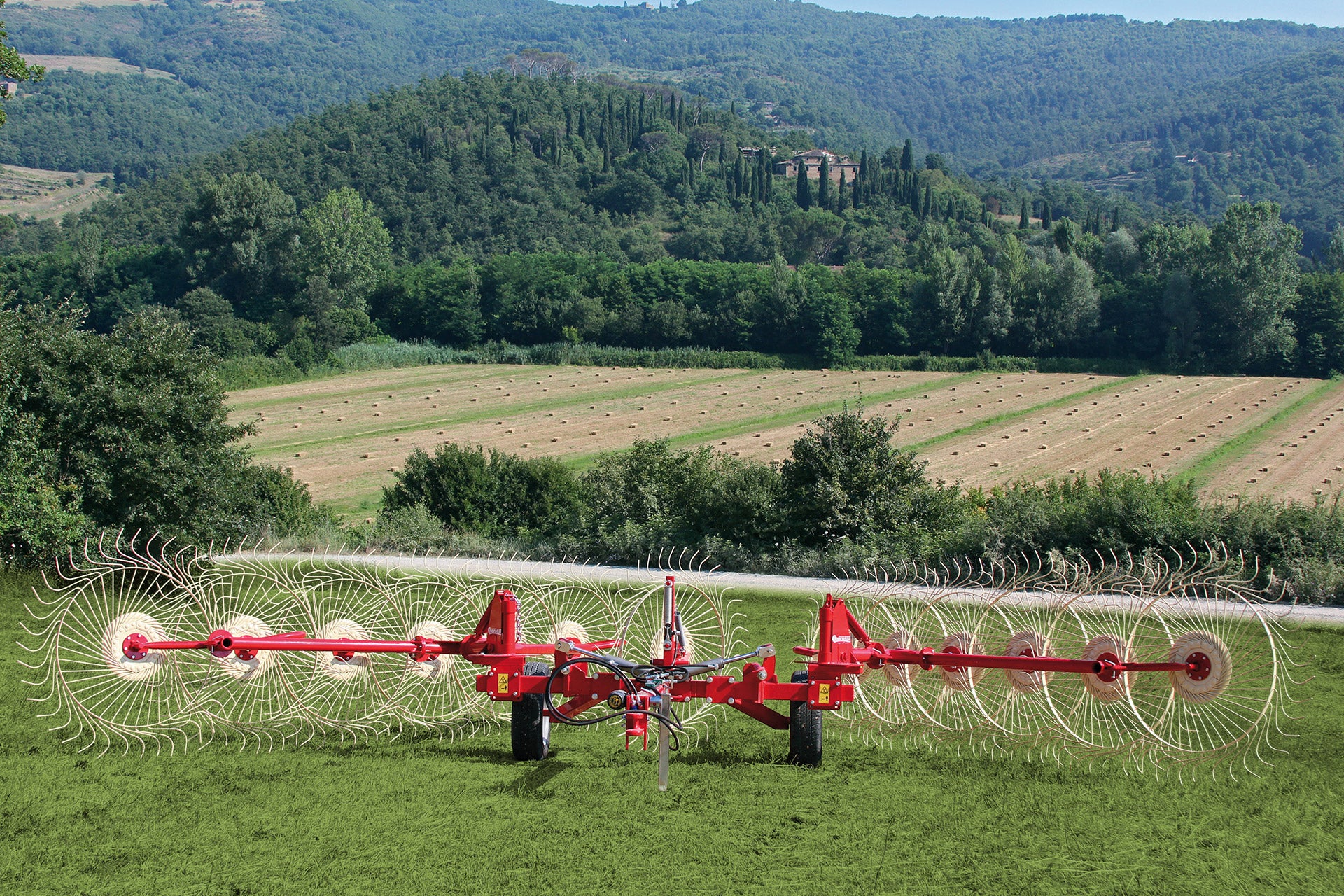

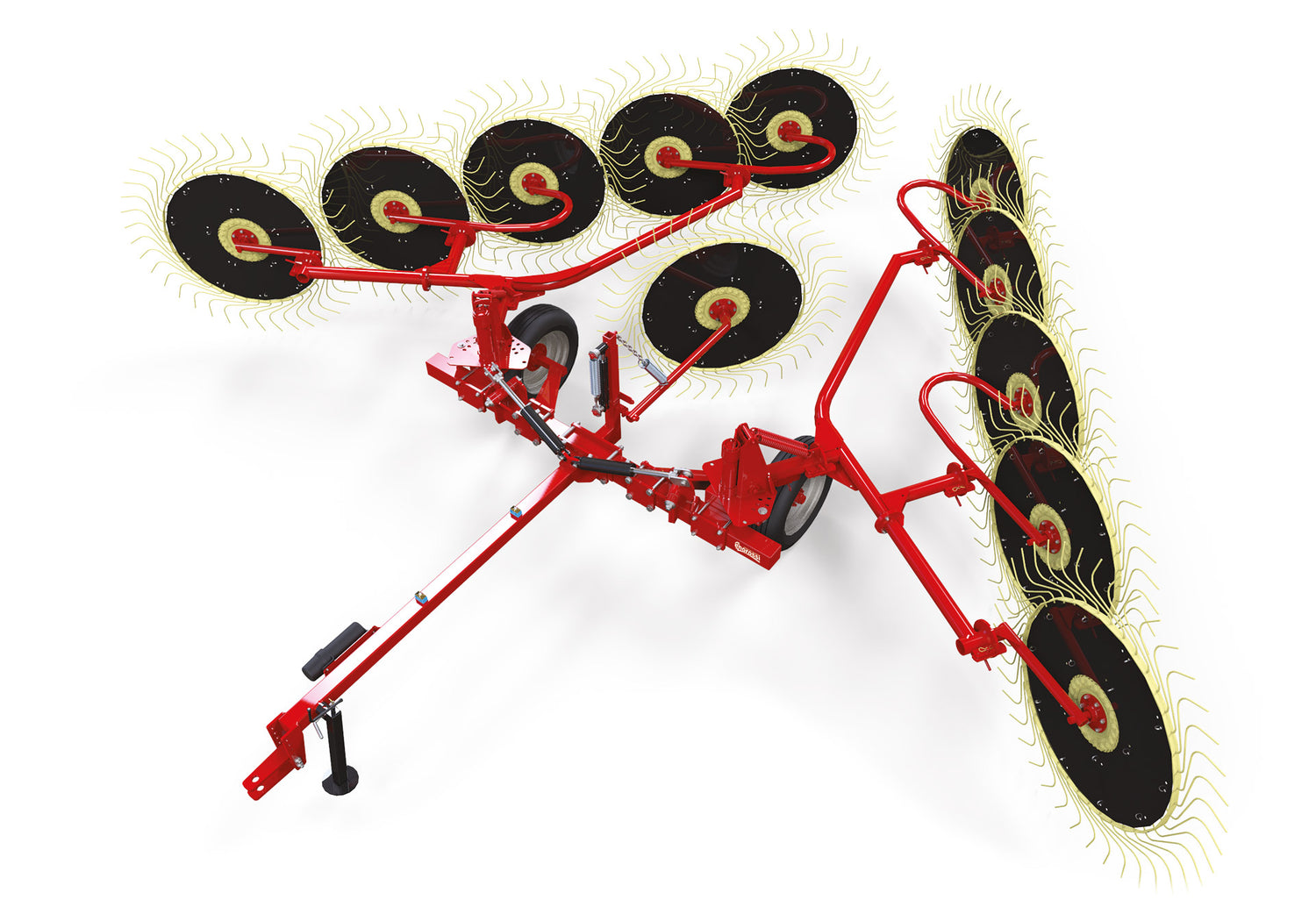

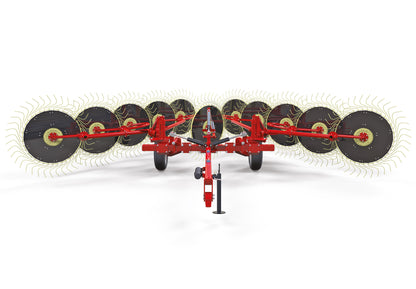

Enorossi CADDY V-Frame Wheel Rake – 15'9" to 24'3" Working Width | Central Joint Design

Get reliable windrow formation in a simple, easy-to-use package with the Enorossi CADDY – a V-frame wheel rake with a central joint, designed for smaller operations that need dependable performance without the complexity. With working widths from 15'9" to 24'3" (4.80m to 7.40m) and a mechanically adjustable central windrow, the CADDY delivers clean raking across a wide range of field conditions.

The CADDY's wide wheelbase provides excellent stability during both work and transport, and the hydraulic lifting system lets you switch quickly between working and transport positions. Shiftable wheels allow you to adjust the wheelbase to match terrain conditions, improving ground contact and stability even on uneven ground. Like all Enorossi wheel rakes, the CADDY works by towing – no PTO required – for lower fuel costs, less maintenance, and reduced environmental impact.

Key Features

• V-Frame with Central Joint
  Articulated design follows the tractor smoothly through turns and provides excellent stability on slopes and in tight spaces.
• Mechanical Working Width Adjustment
  Easily set the windrow width to match crop volume and conditions.
• Hydraulic Lifting System
  Quickly transition between working and transport positions from the tractor cab.
• Shiftable Wheels
  Adjust the wheelbase to adapt the machine to different working conditions and improve ground adherence, even on uneven terrain.
• 57" (145cm) Diameter Rake Wheels
  Standard wheels with 6.9mm C85 heat-treated steel tines for reliable wear resistance and strong pickup.
• Grease-Lubricated Hubs with Tapered Roller Bearings
  Sealed, low-maintenance hub assemblies for long service life.
• 27.5" (70cm) Ground Clearance
  Solid clearance for working over varied ground contours.
• No PTO Required
  Tow-operated with no power take-off, gearboxes, or cam tracks – significantly reducing fuel and maintenance costs.
• Wide Wheelbase for Stability
  Provides safe, stable operation during both fieldwork and road transport.

Standard Equipment

• Hydraulic lifting system
• Mechanical working width adjustment
• Shiftable transport/working wheels
• 57" rake wheels with 6.9mm heat-treated steel tines
• Grease-lubricated hubs with tapered roller bearings

Available Options

• Central rake wheel kit
• Single-arm raking capability
• Oscillating crossbar for lifter
• Street lights kit

Ideal Applications

• Small to Mid-Size Operations – Simple, cost-effective raking for farms that don't need the capacity of larger models.
• Grass, Straw & Corn Stalks – Versatile wheel design handles a wide range of forage and residue types.
• Uneven Terrain – Shiftable wheels and central joint V-frame maintain stable, consistent windrows on difficult ground.
