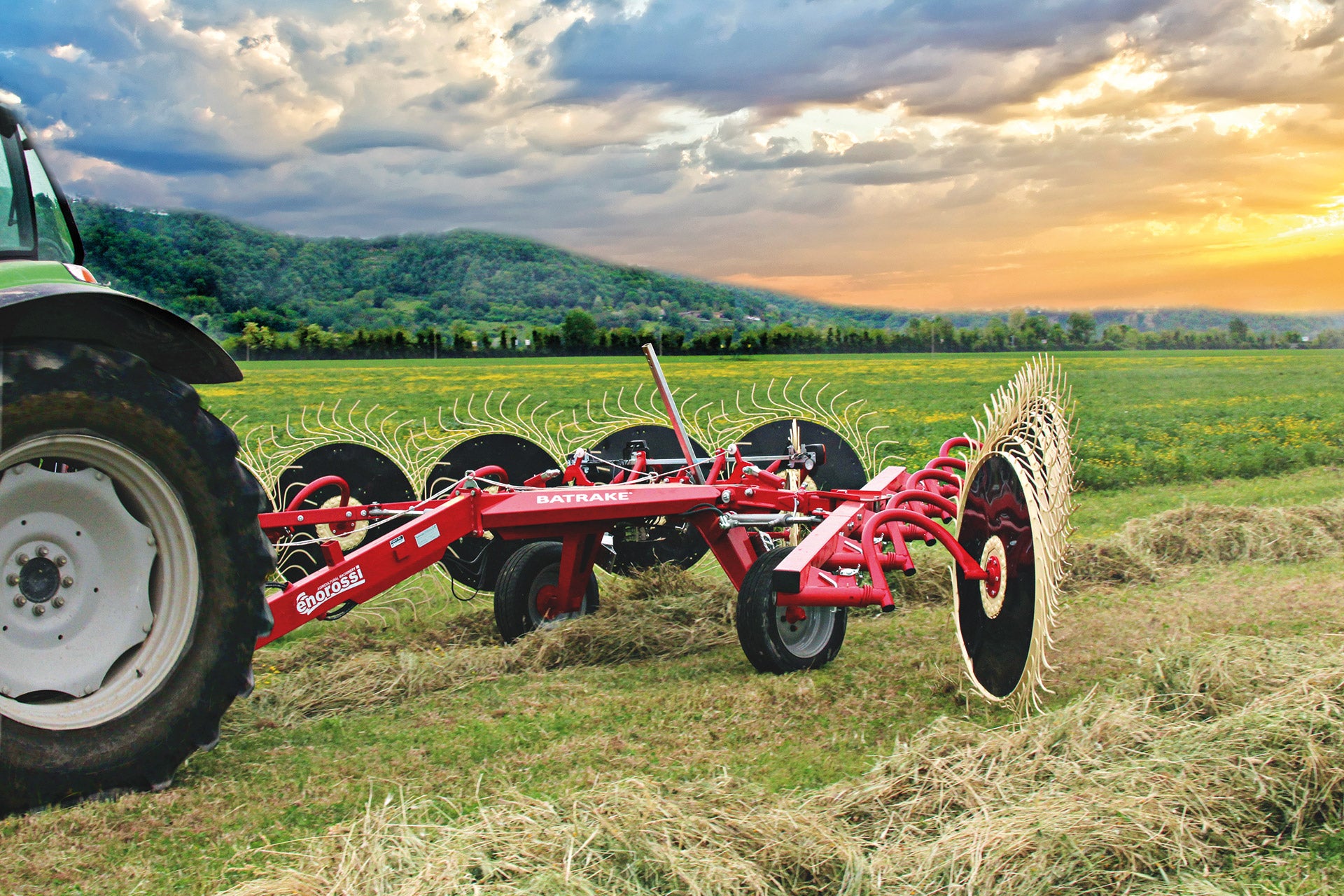

Enorossi BATRAKE V-Frame Wheel Rake – 16' to 24' Working Width | Central Joint Design

Form clean, fluffy windrows quickly and efficiently with the Enorossi BATRAKE – a robust V-frame wheel rake with a central joint, designed for small to medium-sized operations. Available in 8, 10, and 12 wheel configurations with working widths from 16' to 24' (5.00m to 7.40m), the BATRAKE delivers excellent ground adaptation and windrow formation even on sloping and uneven terrain.

Each rake arm moves independently, allowing the wheels to follow ground contours closely for thorough pickup with minimal crop contamination. The EASYJOB® hydraulic system with single-acting cylinders lets you open, close, and transition between working and transport positions directly from the tractor cab. And because wheel rakes work by towing – no PTO required – you get significantly lower fuel consumption, reduced maintenance costs, and less environmental impact compared to rotary rakes.

Available Models

• BATRAKE 8 – 8 wheels, working width from 16' to 18'5" (5.00m to 5.60m)
• BATRAKE 10 – 10 wheels, working width from 18'4" to 21'8" (5.60m to 6.60m)
• BATRAKE 12 – 12 wheels, working width from 19'8" to 24'3" (6.00m to 7.40m)

Key Features

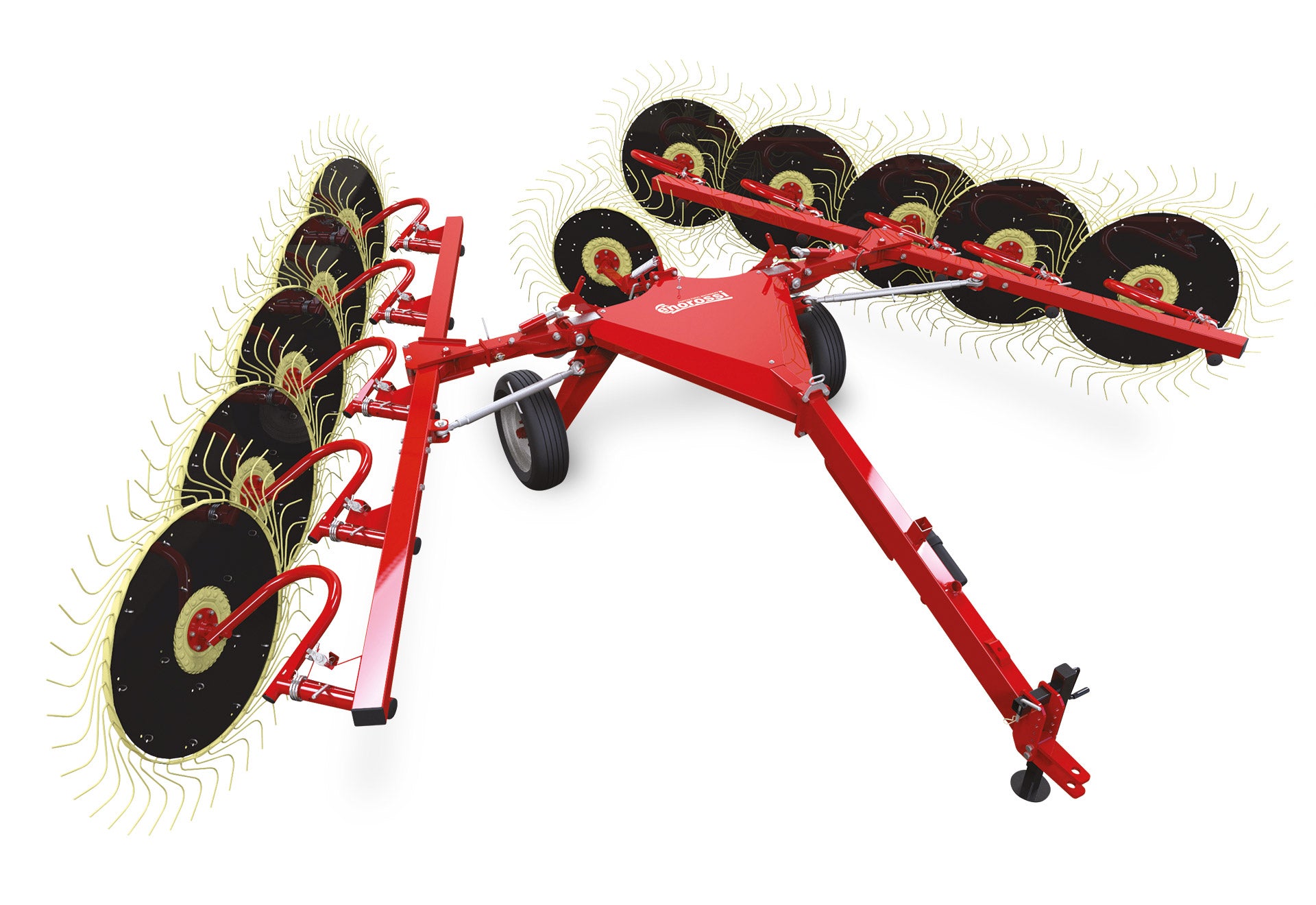

• V-Frame with Central Joint
  The articulated V-design follows the tractor perfectly through tight turns, narrow field entrances, and on slopes – with excellent maneuverability and stability.
• Independent Rake Arms with Spring Pressure Adjustment
  Each arm features an adjustable torsion spring to vary ground pressure based on crop volume and terrain, ensuring uniform windrow formation across the field.
• EASYJOB® Hydraulic Open/Close System
  Single-acting cylinders allow the operator to switch between working and transport positions directly from the cab.
• 60" (150cm) Diameter Rake Wheels
  Heavy-duty wheels with 7.5mm C85 heat-treated steel tines provide excellent wear resistance and strong resistance to breakage.
• 34" (85cm) Ground Clearance
  The heavy-built frame and high profile allow the BATRAKE to work in heavy hay conditions and over all types of ground contours.
• No PTO Required
  Tow-operated with no power take-off, gearboxes, or cam tracks – dramatically reducing fuel costs, maintenance, and downtime.
• Mechanical Working Width Adjustment
  Tilting tie rod on the lateral frame lets you adjust rake wheel angle, working width, and windrow width to match crop conditions.
• Open-Close Working (Standard)
  Rake with one arm open and one closed for end-of-field operations or working in small plots.
• 7° Rake Wheel Angle
  Wheels are set at a 7° angle to create fluffier windrows and leave less hay behind in the field.
• 9' Transport Width
  Folds to a compact 9' (2.75m) wide for safe, stable road transport.

Standard Equipment

• EASYJOB® hydraulic open/close system
• Independent rake arms with adjustable torsion springs
• Mechanical working width adjustment
• Open-close single-arm working capability
• 60" rake wheels with 7.5mm heat-treated steel tines

Available Options

• Hydraulic working width adjustment
• Tandem axle kit
• Central rake wheel kit
• Oscillating crossbar for lifter
• Wind guards
• Street lights kit

Ideal Applications

• Grass, Hay & Straw – Versatile wheel design handles all forage types with clean pickup.
• Sloping & Uneven Terrain – Independent arms and central joint V-frame maintain consistent windrow quality on difficult ground.
• Cost-Conscious Operations – No PTO means lower fuel, fewer moving parts, and minimal maintenance season after season.
